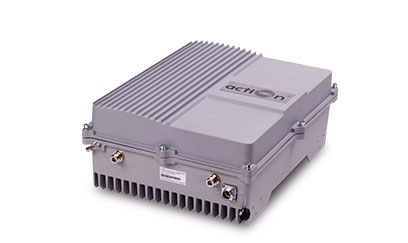

iDEN 选带大功率无线直放站




RF BDA(双向放大器)旨在提供比添加新的基站收发器(BTS)更具成本效益的解决方案,以改善iDEN系统中的信号覆盖范围和通信质量。


特点:

  • 采用IP65防护级别的铝合金机箱,高度防尘、防水、防腐蚀.
  • 支持 TETRA/DMR/P25/iDEN 系统.
  • 用高增益低噪音的线性放大器,尽可能减少对基站的干扰.
  • 采用高选择性和低插损的滤波器消除上下行之间的干扰.
  • RJ45端口能连接笔记本进行本地监控或采用基于IP的网管系统进行监控,实现远程监控多系统分布式天线系统设备的工作状态,以及通过以太网或LAN把操作参数下载到设备.

应用:

延伸信号覆盖范围或弥补信号盲区:

  • 公共安全
  • 运输
  • 公用事业
  • 政府
  • 军事
  • PAMR
  • 商业和工业
  • 石油天然气
ItemsiDEN RF BDA
Frequency Range (Customized)UplinkDownlink
380~385 MHz / 415~420 MHz / 806~821 MHz390~395 MHz / 425~430 MHz / 851~866 MHz
Bandwidth (To Specify Before Production)From 1 to 15MHz,Filter SAW Adjusted
Maximum Gain (Customized)85±3dB85/.../90±3dB
Maximum Output Power (Customized)30±2dBm30/.../43±2dBm
In-Band Flatness≤±2.5dB
ALC(Auto Level Control)≤2dB(When The Maximum Output Power of BDA is Reached, Increase Input Power by 1~20dbm, Output Variation ≤2dB)
Noise Figure≤5dB
Gain Adjustment Range1~31 dB @ Step of 1 dB
VSWR≤1.5
GSystem Delay≤5μSec
Spurious Emission9KHz - 1GHz: ≤ -36dBm / 30KHz
Gain Adjustment Range1GHz - 12.75GHz: ≤ -30dBm / 30KHz
Third-Order Inter-Modulation≤-45dBc
Output/Input Resistance50 Ω
RF ConnectorN-Type (Female)
Working Temperature-25°C ~+55°C
Relative Humidity Range≤95%(Non Condensing)
Power SupplyAC220V, 50/60Hz
Dimensions428mm×328mm×175mm
Weight15kg
ApplicationIndoor or Outdoor(IP65)
Local ControlWeb Browser GUI Local Via RJ-45 Interface or WiFi Hotspot
NMS Mode(Optional)Wirelss Modem(3G/4G), IP Connectivity
NMS Function(Optional)Real-time Alarm for Door Status, Temperature, Power Supply, VSWR, etc; Remote Control Such as Turn On/Off, Increasing/Decreasing Output Power etc; Real-time Status for Output/Input Power, UL/DL Gain, All Status of BDA etc.
