移动通信技术的发展让越来越多的新型通信技术被广泛使用(如4G),电信运营商不得不同时运营多个系统,为一个覆盖区域提供多系统信号服务(2G/3G/4G),从而导致设备的安装和传输困难。由上述原因衍生而出的,便是多系统分布式天线系统,它专门为解决远离基站且地上布有光纤的区域信号覆盖较弱的问题。这个系统由近端和远端两部分构成:近端通过直接耦合基站信号,把射频信号转化为光信号放大后,通过光纤传输给远端;远端再把接收的光信号转化回射频信号,提供到网络覆盖不足的区域。同时,移动信号也可通过放大并经由相反的方向传输到基站。
特点:
应用:

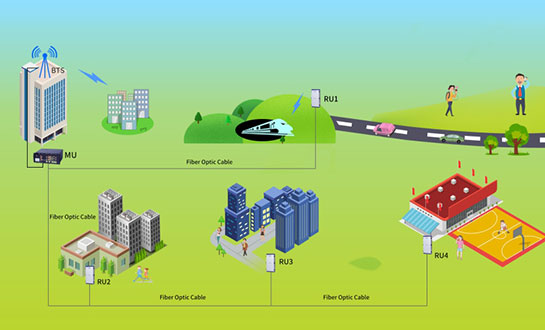

示意图:

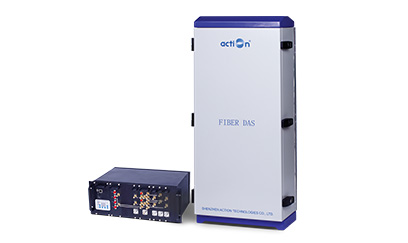

Items | Master Unit | Remote Unit |
---|---|---|
LTE700 & LTE900 & LTE1800 & WCDMA2100 & LTE2600 | ||
Frequency Range | Uplink | 703~748MHz&885~915MHz&1710~1775MHz&1920~1980MHz&2500~2570MHz |
Downlink | 758~803MHz&930~960MHz&1805~1870MHz&2110~2170MHz&2620~2690MHz | |
Transmission Distance | ≤20km | |
Maximum Input Power (Non-Destructive) | 10dBm | |
Maximum Output Power | 43±2dB per Band | |
System Gain(MU+RU) | 55±3dB(MU+RU) | |
Gain Adjustment Range | 0~30dB@Step of 1dB | |
VSWR | ≤1.5 | |
Noise Figure@1RU Connection | ≤5dB | |
Gain Flatness | ≤±3dB | |
Spurious Emission | 9kHz~1GHz: ≤ -36dBm/30kHz | |
1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
System Delay | ≤5us | |
I/O Impedance | 50Ω | |
RF Connector | 5 X N-Female for MU,DIN-Female for RU | |
Optical Connector | 4 X FC/APC for MU,1 X LC/UPC for RU | |
Fiber Type/Number | Single mode | |
Optical Output Power | 0±3dBm@1310nm/≥±3dBm@1550nm | |
Optical Receiver Sensitivity | ≥-15dBm | |
Temperature Range | -25°C ~ + 55°C | |
Relative Humidity Range | ≤95%(non condensing) | |
Power Supply(Customized) | AC100-240V,50/60Hz | |
Dimensions | 483x223x500 mm | 980x420x230 mm |
Weight | ≤10kg | ≤50kg |
Aplication | Indoor(IP30) | Indoor or Outdoor(IP65) |
Local Control | Web Browser GUI Local Via RJ-45 Interface or WiFi Hotspot | |
NMS Mode(Optional) | Wireless Modem (3G/4G), IP Connectivity | |
NMS Function(Optional) | Real-time alarm for door status, temperature, power supply, VSWR, etc; Remote control such as turn on/off, increasing/decreasing output power etc; Real-time status for output/input power, UL/DL gain, all status of Active DAS etc. |
