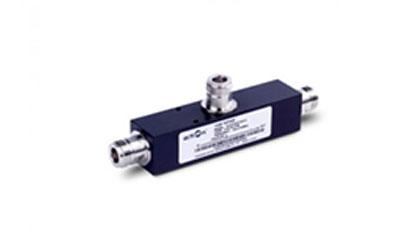

Tapper的低插损和耦合值能让其分配较小功率的射频或天线信号。与功分器相比，Tapper并不分割信号，而是在受到插损和耦合的情况下，尽可能把同样的输入值传输到两个输出端口。与耦合器相比，Tapper并不需要减低隔离度便可运行。
Tapper 规格参数:
| Model | AT2203063843F | AT2205063843F | AT2206063843F | AT2208063843F |
|---|---|---|---|---|
| Coupling | 3dB | 4.8dB | 6dB | 8dB |
| Frequency (Customized) | 698~1400 MHz & 1700~3800 MHz | |||
| Coupling Valuing (dB) | 4.8±1.2 | 6.1±1.0 | 7±0.8 | 8.6±0.8 |
| Insertion Loss (dB) | ≤2.1 | ≤1.7 | ≤1.4 | ≤1.1 |
| VSWR | ≤1.3 | |||
| PIM3 | ≤-160dBc @2×43dBm | |||
| Impedance | 50Ω | |||
| Power Handing | 300W(Avg.) | |||
| Operating Temperature Range | -40℃ to + 65℃ | |||
| Relative Humidity | 5%~95% | |||
| Aplications | Indoor or Outdoor(IP67) | |||
| Connector Type (Customized) | 4.3-10 Female / DIN Female / N Female | |||
| Weight | ≤0.5Kg | |||
| Dimentions | 105×25×25(mm) | |||
| Packing | 1 pcs/box | |||
| Model | AT2209063843F | AT2210063843F | AT2213063843F | AT2215063843F |
|---|---|---|---|---|
| Coupling | 9dB | 10dB | 13dB | 15dB |
| Frequency (Customized) | 698~1400 MHz & 1700~3800 MHz | |||
| Coupling Valuing (dB) | 9.5±0.8 | 10.4±0.8 | 13.2±0.8 | 15.1±0.8 |
| Insertion Loss (dB) | ≤0.9 | ≤0.7 | ≤0.5 | ≤0.3 |
| VSWR | ≤1.3 | |||
| PIM3 | ≤-160dBc @2×43dBm | |||
| Impedance | 50Ω | |||
| Power Handing | 300W(Avg.) | |||
| Operating Temperature Range | -40℃ to + 65℃ | |||
| Relative Humidity | 5%~95% | |||
| Aplications | Indoor or Outdoor(IP67) | |||
| Connector Type (Customized) | 4.3-10 Female / DIN Female / N Female | |||
| Weight | ≤0.5Kg | |||
| Dimentions | 105×25×25(mm) | |||
| Packing | 1 pcs/box | |||
| Model | AT2220063843F | AT2230063843F |
|---|---|---|
| Coupling | 20dB | 30dB |
| Frequency (Customized) | 698~1400 MHz & 1700~3800 MHz | |
| Coupling Valuing (dB) | 20.1±0.8 | 30.1±2 |
| Insertion Loss (dB) | ≤0.3 | ≤0.3 |
| VSWR | ≤1.3 | |
| PIM3 | ≤-160dBc @2×43dBm | |
| Impedance | 50Ω | |
| Power Handing | 300W(Avg.) | |
| Operating Temperature Range | -40℃ to + 65℃ | |
| Relative Humidity | 5%~95% | |
| Aplications | Indoor or Outdoor(IP67) | |
| Connector Type (Customized) | 4.3-10 Female / DIN Female / N Female | |
| Weight | ≤0.5Kg | |
| Dimentions | 105×25×25(mm) | |
| Packing | 1 pcs/box | |
