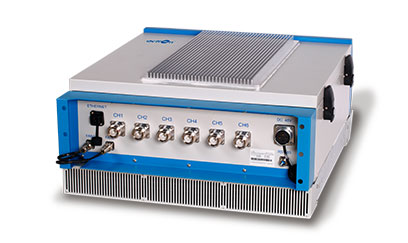

大功率移动信号屏蔽器可以帮助那些可能面临移动通信问题困扰的地方进行信号屏蔽,例如,响亮的来电铃声,响亮的电话交流,秘密泄露,通过手机控制的炸弹爆炸,对加油站、化学材料仓库和医院设备的电磁辐射等。该产品适用于总裁办公室、董事会会议、会议室、研讨会、图书馆、电影院、宗教场所、公共交通、音乐厅、餐厅、教育机构、监狱等。
移动信号屏蔽器通过传输强功率无线信号切断移动终端和移动基站之间的通信,但不会干扰管制区内除屏蔽频段以外的信号通信。
一旦移动信号屏蔽器开启后,所有待机状态的手机会显示“无服务”。就像关机一样,来电呼叫会被屏蔽。当屏蔽器关闭后,所有手机就会自动重新建立通信,并提供全面服务。
特点:
应用:

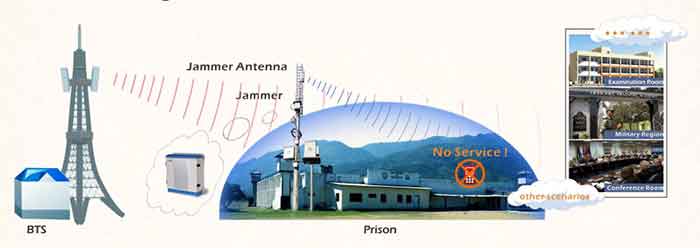

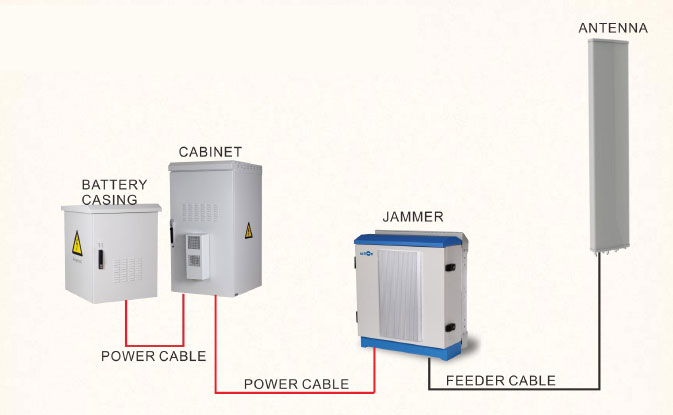

示意图:
ITEMS | SPECIFICATIONS | |||||
---|---|---|---|---|---|---|
Jamming Systems(Customized) | 2G/3G/4G/WiFi/Bluetooth/GPS | |||||
Output Ports(Customized) | GSM/UMTS850 | |||||
GSM/UMTS900 | ||||||
DCS/LTE1800 | ||||||
UMTS2100 | ||||||
TDD-LTE2300 | ||||||
LTE2600 | ||||||
Jamming Frequencies(Customized) | 869~894MHz | |||||
935~960MHz | ||||||
1805~1880MHz | ||||||
2110~2170MHz | ||||||
2300~2400MHz | ||||||
2620~2690MHz | ||||||
Output Power(Customized) | 850MHz | 900MHz | 1800MHz | 2100MHz | 2300MHz | 2600MHz |
47dBm/50W | 47dBm/50W | 47dBm/50W | 47dBm/50W | 47dBm/50W | 47dBm/50W | |
Total RF Output Power | 300W | |||||
Power Adjustable | 5-class of power adjustable on each band independently | |||||
Jamming Radius | Up to 100 Meters(Related to the Wireless Environment of Target Area) | |||||
Connector Type | DIN-Female | |||||
Power Supply(Customized) | AC220V/AC110V or DC-48V | |||||
Power Consumption | 1000W | |||||
Weight | 60kg(Including Brackets) | |||||
Operation Temperature Range | -20°C ~ + 50°C | |||||
Dimensions | 615×590×270 mm | |||||
Application | Indoor or Outdoor(IP65) | |||||
Installation | Fixed Installation(Pole or Wall Installation) | |||||
Accessories | 6 PCS Jumpers and 6 Ports Antenna Are Needed |
