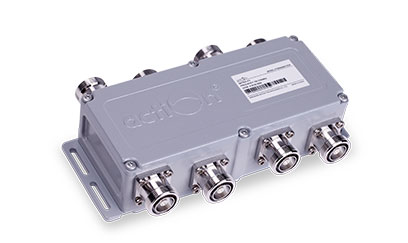

这是一个相同的频段合路器,其频率可以为所有运营商定制。 Matrix 4x4电桥设计有4个输入和4个输出,可以有效地集成多个近频带,并分别通过多个端口传输整个频带。 对于未使用的端口,可以使用低PIM虚拟负载端接它们。 整个外壳采用IP66防水等级,可应用于室内和室外。 对于IBS / BTS系统来说,这将是您的不错选择。
特点:
Type | Hibrid Combiner 698~2700 MHz(4In - 4Out) | |||
---|---|---|---|---|
Port | Port 1 | Port 2 | Port 3 | Port 4 |
Frequency Range | 698~3800MHz | 698~3800MHz | 698~3800MHz | 698~3800MHz |
VSWR | ≤1.22 | |||
Insertion Loss | ≤6.9dB | |||
Isolation | ≥ 26 dB | |||
Inter-modulation(3rd order) | ≤-160dBc @2 x 20W | |||
Power Handing(W) | ≤300W | |||
DC/AISG Transparency | DC path IN 1→OUT 4, IN 2→OUT 2 | |||
DC path IN 3→OUT 3, IN 4→OUT 1 | ||||
(max.6.5A AISG 2.0 confirm) | ||||
Connector Type | 8Pcs 4.3-10 Female/DIN Female/N Female | |||
Aplication | Indoor or Outdoor(IP67) | |||
Operating Temperature(℃) | -20℃ to + 60℃ | |||
Storage Temperature Range | -40°C to +85°C | |||
Relative Humidity | 5% - 95% | |||
Impedance | 50Ω | |||
Dimensiton | 250×94×45(mm) | |||
Weight | 2.0Kg | |||
Packing | 1 Piece/box |
