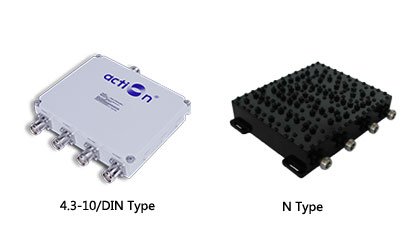

这是一款异频合路器,其频段可为所有运营商定制。4进1出的设计,让这款四频合路器能够有效地整合多个异频信号并在同一个端口输出异频信号。我们使用IP66的防水等级标准外壳,能使合路器同时适用与室内和室外场景。对于室内/室外信号覆盖系统来说,这将会是不错的选择。
特点:

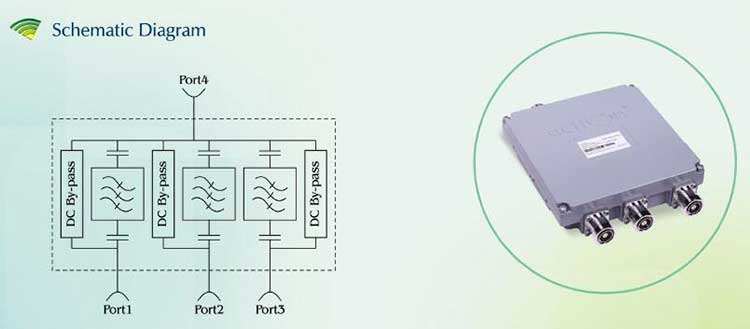

示意图:
4.3-10/DIN Female Specification: | ||||
---|---|---|---|---|
Type | 4 Ports In - 1 Port Out | |||
Port | Port 1 | Port 2 | Port 3 | Port 4 |
Operating Frequency Band | 698~960 MHz | 1710~1880 MHz | 1920~2170 MHz | 2300~2700 MHz |
VSWR | ≤1.22 | |||
Insertion Loss | ≤0.35dB @698~960MHz | |||
≤0.35dB @1710~1880MHz | ||||
≤0.35dB @1920~2170MHz | ||||
≤0.35dB @2300~2700MHz | ||||
Isolation Between Bands | > 50.0 dB | |||
PIM3 | ≤-160dBc @2 x 20W | |||
Power Handing(W) | ≤200W | |||
Connector Type | 4.3-10 Female/DIN Female | |||
Aplication | Indoor or Outdoor(IP67) | |||
Impedance | 50Ω | |||
Operating Temperature(℃) | -20℃ to + 65℃ | |||
Relative Humidity | 5% ~ 95% | |||
DC/AISG Transparency | By-Pass(Max. 3000mA) | |||
Lighting Protection | 10kA, 10/350μs pulse | |||
Mounting | Wall or Mast Mount | |||
Weight | ≤3Kg |
N Female Specification: | ||||
---|---|---|---|---|
Type | 4 Ports In - 1 Port Out | |||
Port | Port 1 | Port 2 | Port 3 | Port 4 |
Operating Frequency Band | 698~960 MHz | 1710~1880 MHz | 1920~2170 MHz | 2300~2700 MHz |
VSWR | ≤1.22 | |||
Insertion Loss | ≤0.8dB @698~960MHz | |||
≤0.8dB @1710~1880MHz | ||||
≤0.8dB @1920~2170MHz | ||||
≤0.8dB @2300~2700MHz | ||||
Isolation Between Bands | > 80 dB | |||
PIM3 | ≤-155dBc @2 x 20W | |||
Power Handing(W) | ≤200W | |||
Connector Type | N Female | |||
Aplication | Indoor | |||
Impedance | 50Ω | |||
Operating Temperature(℃) | -20℃ to + 65℃ | |||
Relative Humidity | 5% ~ 95% | |||
Weight | ≤1.45Kg | |||
Dimensions | 175x148x35.5(mm) | |||
Packing | 1 PCS/Box |
