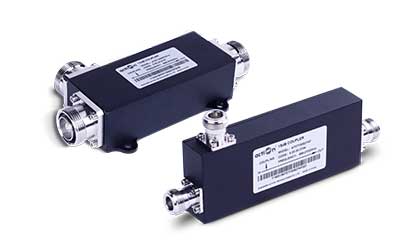

射频功分器是一个功率分割、低插损的无源设备。它可同时适用室内或室外信号分配系统,能把同一输入信号按耦合程度分为两路或多路的输出信号。
耦合器规格参数:
Model | AT0705066043F | AT0706066043F | AT0707066043F | AT0708066043F |
Coupling Level | 5dB | 6dB | 7dB | 8dB |
Frequency | 698~6000 MHz |
Coupling Uniformity | ±0.8 | ±0.8 | ±0.8 | ±0.8 |
Insertion Loss | ≤2.1 | ≤1.7 | ≤1.5 | ≤1.3 |
V.S.W.R | ≤ 1.25dB |
Isolation | ≥25 | ≥26 | ≥27 | ≥28 |
Inter-modulation(3rd order) | < -160 dBc @ 2x43 dBm |
Impedance | 50Ω |
Power Handing | 300W(Avg.) |
Operating Temperature Range | -40°C to +65°C |
Storage Temperature Range | -40℃ to + 85℃ |
Relative Humidity | 5~95 % |
Aplications | Indoor or Outdoor(IP67) |
Connectors | 4.3-10 Female / DIN Female / N Female |
Weight | ≤0.8Kg |
Dimentions | 180×71×38(mm) |
Packing | 1 pcs/box |
Model | AT0710066043F | AT0712066043F | AT0715066043F | AT0720066043F |
Coupling Level | 10dB | 12dB | 15dB | 20dB |
Frequency | 698~6000 MHz |
Coupling Uniformity | ±1 | ±1 | ±1 | ±1 |
Insertion Loss | ≤0.7 | ≤0.6 | ≤0.4 | ≤0.3 |
V.S.W.R | ≤ 1.25dB |
Isolation | ≥30 | ≥32 | ≥35 | ≥40 |
Inter-modulation(3rd order) | < -160 dBc @ 2x43 dBm |
Impedance | 50Ω |
Power Handing | 300W(Avg.) |
Operating Temperature Range | -25°C to +65°C |
Storage Temperature Range | -40℃ to + 85℃ |
Relative Humidity | 5~95 % |
Aplications | Indoor or Outdoor(IP67) |
Connectors | 4.3-10 Female / DIN Female / N Female |
Weight | ≤0.8Kg |
Dimentions | 180×71×38(mm) |
Packing | 1 pcs/box |
Model | AT0725066043F | AT0730066043F | AT0735066043F | AT0740066043F |
Coupling Level | 25dB | 30dB | 35dB | 40dB |
Frequency | 698~6000 MHz |
Coupling Uniformity | ±1 | ±1 | ±1 | ±1 |
Insertion Loss | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
V.S.W.R | ≤ 1.25dB |
Isolation | ≥45 | ≥50 | ≥55 | ≥60 |
Inter-modulation(3rd order) | < -160 dBc @ 2x43 dBm |
Impedance | 50Ω |
Power Handing | 300W(Avg.) |
Operating Temperature Range | -25°C to +65°C |
Storage Temperature Range | -40℃ to + 85℃ |
Relative Humidity | 5~95 % |
Aplications | Indoor or Outdoor(IP67) |
Connectors | 4.3-10 Female / DIN Female / N Female |
Weight | ≤0.8Kg |
Dimentions | 180×71×38(mm) |
Packing | 1 pcs/box |
