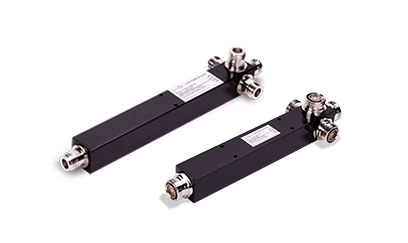

射频功分器是一个功率等分、低插损的无源设备。它可同时适用室内或室外信号分配系统,能把同一输入信号平均分为两路或多路的同幅输出信号。
示意图:

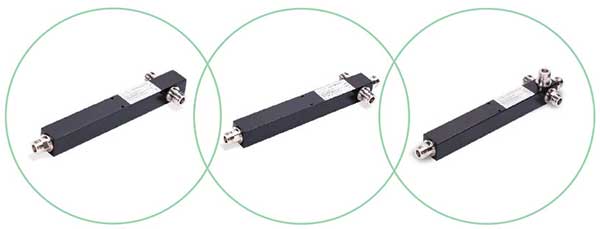

N头2功分器 / 3功分器 / 4功分器

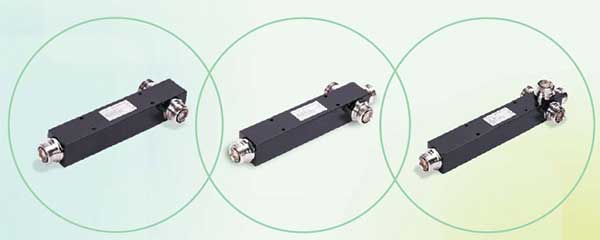

DIN头2功分器 / 3功分器 / 4功分器
Type | 2-Way | 3-Way | 4-Way |
---|---|---|---|
Model | AT060102066043F/DF/NF | AT060103066043F/DF/NF | AT060104066043F/DF/NF |
Frequency Range | 698~6000 MHz | ||
Insertion Loss | ≤0.2dB | ≤0.3dB | ≤0.4dB |
Split Loss | ≤ 3.0dB | ≤ 4.8dB | ≤ 6.0dB |
Ripple | ≤ 0.3dB | ≤ 0.4dB | ≤ 0.5dB |
V.S.W.R | ≤1.25 | ≤1.25 | ≤ 1.30dB |
Impedance | 50Ω | ||
Power Handling | ≤300W | ||
PIM3 | ≤-160dBc @2×43dBm | ||
Connector Type (Customized) | 4.3-10 Female / DIN Female / N Female | ||
Operating Temperature Range | -30°C ~ +75°C | ||
Storage Temperature Range | -40°C ~ +85°C | ||
Relative Humidity | 5% ~ 95%td> | ||
Aplication | Indoor or Outdoor(IP67) | ||
Dimentions | 208.5×38×38(mm) | 209×38×38(mm) | 212×38×38(mm) |
Weight | 0.9 Kg | 1.0 Kg | 1.1 Kg |
