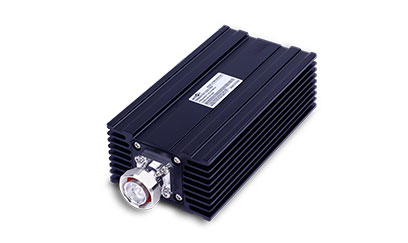

负载




用于消耗端口多余功率/信号。

  • 室内、室外均可适用。

规格参数:

ModelAT08100006043M/DM/NM
Frequency Range(Customized)DC~6GHz
V.S.W.R≤1.22
Rated Power(Customized)≤100W
PIM3≤ -160 dBc @ 2x43 dBm
Connector Type(Customized)4.3-10 Male/DIN Male/N Male
Impedance50Ω
Operating Temperature Range-55℃ to + 65℃
Relative Humidity5%~95%
AplicationsIndoor or Outdoor(IP67)
Weight2Kg
Dimentions189×100×60(mm)
Packing1 pcs/box
