塔放是一个经济实惠的信号覆盖方案,能让运营商通过只增强上行信号敏感度来改善基站的整个网络覆盖效果。一般会将其安装在塔顶,尽可能地靠近接收天线,来尽力减少噪音和信号弱区。

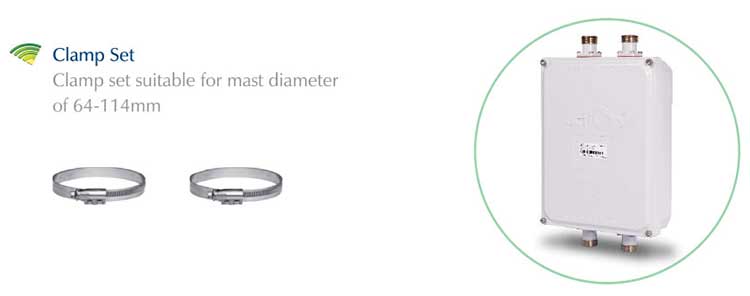

特点:
示意图:
Items | Uplink | Downlink | |
---|---|---|---|
Working Frequency (customize) | Band1 | 824~849 MHz | 869~894 MHz |
Band2 | 890~915 MHz | 935~960 MHz | |
Band3 | 1710~1785 MHz | 1805~1880 MHz | |
Band4 | 1850~1910 MHz | 1930~1990 MHz | |
Gain | 12±1dB | -- | |
Flatness | ≤ ±0.5dB | -- | |
Noise Figure | ≤ 1.8dB | -- | |
Group Delay | 45 ns max over and 5MHz in Rx Band | ||
Return Loss in by pass Mode | > 15dB | > 18dB< | |
Return Loss in Normal Mode | > 17dB | > 18dB< | |
Max Input Power | < 12dB | -- | |
Insert Loss in by-pass Mode | < 2.8dB Max | 0.50dB typ., 0.70dB max | |
Inter-modulation Products in Rx Band | < 112dBm (2 Tx carriers at + 43dBm) (power up) | ||
Output 1 dB Compression | > 20dBm | -- | |
I/O Impedance | 50Ω | ||
Power Supply | DC 10-30V | ||
Operating Current per TMA(Without RET) | Nom. 280mA at 10V / Nom. 110mA at 30V | ||
Power Handing | 2.5KWPEAK; 200W AVG | ||
Alarm Management(Optional) | AISG | ||
Material | Aluminum Housing | ||
RF Connector | 7/16 DIN female | ||
AISG Connector(Optional) | 8-pin female, IEC 60130-9(Pin 3:RS485B, Pin 5:RS485A, Pin1 & Pin6: 9-30V DC, Pin7: DC return, other pins: not connected) | ||
Working Temperature Range | -40 ~ +65℃ | ||
EMC | According to ETS 300 342-3 | ||
MTBF | > 1000000 hours(per TMA) |
