这是一款异频合路器,其频段可为所有运营商定制。3进1出的设计,让这款三频合路器能够有效地整合多个异频信号并在同一个端口输出异频信号。我们使用IP66的防水等级标准外壳,能使合路器同时适用与室内和室外场景。对于室内/室外信号覆盖系统来说,这将会是不错的选择。。
特点:

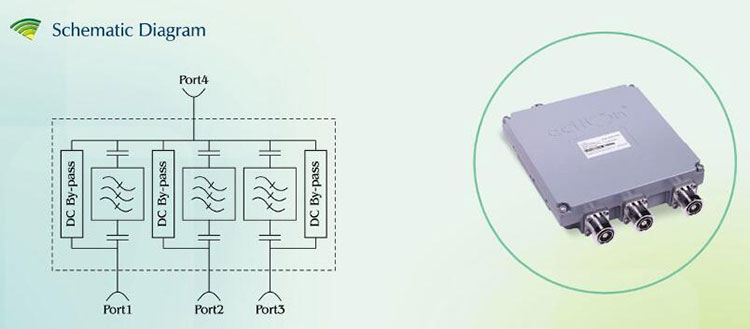

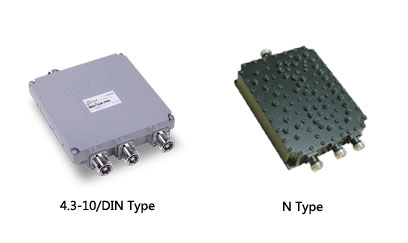

示意图:
N Female Specification: | |||
---|---|---|---|
Type | 3Ports In - 1Port Out | ||
Port | Port 1 | Port 2 | Port 3 |
Operating Frequency Band | 698~960MHz | 1710~2170MHz | 2400~2700MHz |
Insertion Loss | < 0.5dB | ||
In-Band Ripple | ≤0.3dB | ||
VSWR | < 1.25dB | ||
Rejection | ≥50dB | ||
PIM3 | ≤-155dBc @2 x 20W | ||
Power Handling | ≤200W | ||
Connector Type | N Female | ||
Aplication | Indoor | ||
Impedance | 50Ω | ||
Operating Temperature(℃) | -20℃ to + 65℃ | ||
DC/AISG Transparency | By-Pass(Max. 3000mA) | By-Pass(Max. 3000mA) | By-Pass(Max. 3000mA) |
Relative Humidity | 5% ~ 95% | ||
Dimensions | 148x120x35.5(mm) | ||
Weight | ≤0.9Kg | ||
Packing | 1 PCS/Box |
4.3-10/DIN Female Specification: | |||
---|---|---|---|
Type | 3Ports In - 1Port Out | ||
Port | Port 1 | Port 2 | Port 3 |
Operating Frequency Band | 790~960 MHz | 1710~1880 MHz | 1920~2170 MHz |
Insertion Loss | < 0.30dB | ||
VSWR | < 1.22dB | ||
Isolation Between Bands | ≥60dB @698~960MHz | ||
≥60dB @1710~1880MHz | |||
≥60dB @1920~2170MHz | |||
PIM3 | ≤-160dBc @2 x 20W | ||
Power Handling | ≤200W | ||
Connector Type | 4.3-10 Female/DIN Female | ||
Aplication | Indoor or Outdoor(IP67) | ||
Impedance | 50Ω | ||
Operating Temperature(℃) | -20℃ to + 60℃ | ||
DC/AISG Transparency | By-Pass(Max. 3000mA) | By-Pass(Max. 3000mA) | By-Pass(Max. 3000mA) |
Relative Humidity | 5% ~ 95% | ||
Lighting Protection | 10kA, 10/350μs pulse | ||
Mounting | Wall or Mast Mount | ||
Weight | ≤3.6Kg |
