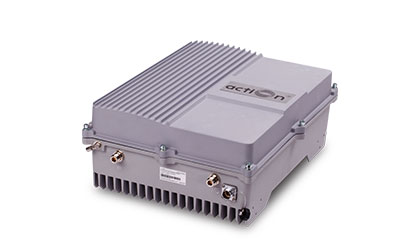

iDEN ICS 直放站


iDEN ICS 直放站


iDEN ICS 直放站





特点:

  • 铝合金外壳,防护等级达到IP65,可防尘,防水和防腐蚀.
  • 支持 TETRA/DMR/P25/iDEN 系统.
  • 高度选择性的数字通道选择器可以同时处理8个通道.
  • 实时干扰信号消除(多径衰落,反馈信号).
  • 采用高选择性和低插入损耗的滤波器消除了上行链路和下行链路之间的干扰.
  • RJ45端口能连接笔记本进行本地监控或采用基于IP的网管系统进行监控,实现远程监控多系统分布式天线系统设备的工作状态,以及通过以太网或LAN把操作参数下载到设备.

应用:

扩大信号覆盖范围或在无线电网络信号较弱或不可用的地方填充信号盲区.

  • 公共安全
  • 运输
  • 公用事业
  • 政府
  • 军事
  • PAMR
  • 商业和工业
  • 石油天然气
ItemsiDEN ICS BDA
Frequency Range (Customized)Uplink380~385 MHz / 415~420 MHz / 806~821 MHz
Downlink390~395 MHz / 425~430 MHz / 851~866 MHz
Maximum Output Power (Customized)Uplink30dBm
Downlink30/.../43±2dBm
Maximum Gain85/.../95±3dB (Customized)
Gain Adjustment Range1~31 dB @ Step of 1 dB
Operating Maximum Gain≥Antenna Isolation + 10dB
No. of Channels8
Power Amplifier Oscillation ProtectionInterference Cancellation System
Cancellation Feedback Signals – Maximum Sizes of Window≥6μSec
Interference Cancellation Range≥25dB
VSWR≤1.5
Noise Figure≤6dB
In-Band Ripple≤3dB
Maximum Input Power (Non-Destructive)-10dBm
Spurious Emission≤-36dBm
Third-order Inter-Modulation≤-45dBc
System Delay≤8.0μSec
I/O Impedance50Ω
RF ConnectorN-Type (Female)
Operation Temperature Range-25°C ~ + 55°C
Relative Humidity Range≤95% (Non Condensing)
ApplicationIndoor or Outdoor(IP65)
Dimensions428mm×328mm×175mm
Weight15Kg
Power Supply (Customized)AC110V or AC220V, 50/60Hz
Local ControlWeb Browser GUI Local Via RJ-45 Interface or WiFi Hotspot
NMS Mode (Optional)Wirelss Modem (3G/4G), IP Connectivity
NMS Function(Optional)Real-time Alarm for Door Status, Temperature, Power Supply, VSWR, etc; Remote Control Such as Turn On/Off, Increasing/Decreasing Output Power etc; Real-time Status for Output/Input Power, UL/DL Gain, All Status of BDA etc.
