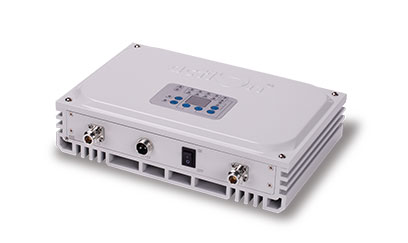

与添加新的基站收发器（BTS）相比，iDEN Band Selective Pico BDA旨在提供更具成本效益的解决方案，以改善iDEN Pico BDA系统中的信号覆盖范围和通信质量。
特点:
应用:
扩大信号覆盖范围或在无线电网络信号较弱或不可用的地方填充信号盲区.
| Items | iDEN PICO BDA | |
|---|---|---|
| Frequency Range | Uplink (Customized) | 380~385 MHz / 415~420 MHz / 806~821 MHz |
| Downlink (Customized) | 390~395 MHz / 425~430 MHz / 851~866 MHz | |
| Bandwidth (To Specify Before Production) | From 1 to 15MHz,Filter SAW Adjusted | |
| Maximum Gain | 65±3dB | |
| Maximum Output Power(Customized) | 20±2dBm | |
| AGC&MGC Range | ≥20dB | |
| Maximum Input Power(Non-Destructive) | ≤0dBm | |
| I/O Impedance | 50 Ω | |
| Noise Figure | ≤ 6dB | |
| System Delay | ≤ 5μs | |
| VSWR | ≤ 2.0 | |
| RF Connector | N-Type (Female) | |
| Spurious Emission | 9kHz~1GHz: ≤ -36dBm/30kHz | |
| 1GHz~12.75GHz:≤-30dBm/30kHz | ||
| Power Consumption | ≤ 25W | |
| Power Supply | Input:AC100~ 240V;Output:9V/5A | |
| Dimensions | 188mm×265mm×68mm | |
| Weight | ≤5 kg | |
| Alarm Monitoring System | Alarm for Uplink Self-Oscillation | |
| Isolation Detection | Isolation Check During Boot Time | |
| LED Indicator | Power Supply, Smart, State | |
| Operating Temperature | -10 ~ +50 °C | |
| Application | Indoor(IP30) | |
| Relative Humidity Range | ≤ 95%(Non Condensing) | |
