双单元基站滤波器

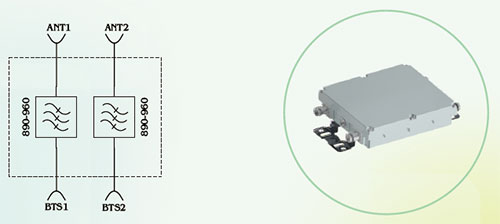

1. 示意图:




2. 规格参数:


Type2Ports In - 2Ports Out
Operating Frequency (Customized)890~960 MHz
VSWR≤1.22
Rejection≥50dB @DC~885MHz
PIM3≤-160dBc @2 × 20W
Power Handling≤200W
Impedance50Ω
DC/AISG TransparencyBy-Pass(Max.3000 mA)
Lightning Protection10kA, 10/350μs pulse
Connector Type4.3-10 Female / DIN Female
Dimensions230×205×57 (mm)
Operating Temperature-20°C to +60°C
Weight4Kg
