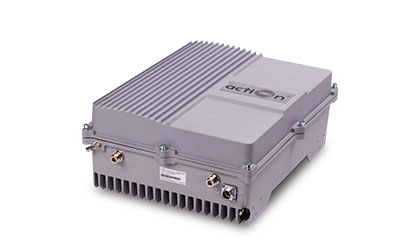

UHF RF BDA


UHF 选频 Pico BDA


UHF选带大功率无线直放站




与添加新的基站收发器(BTS)相比,UHF RF BDA(双向放大器)旨在提供更具成本效益的解决方案,以改善UHF系统中的信号覆盖范围和通信质量。


特点:

  • 铝合金外壳,防护等级达到IP65,可防尘,防水和防腐蚀.
  • 支持所有组合的UHF频段.
  • 采用高增益,低噪声的线性放大器,对基站的干扰小.
  • 采用高选择性和低插入损耗的滤波器消除了上行链路和下行链路之间的干扰.
  • RJ45端口提供了到笔记本电脑的链接,用于本地监管或基于IP的NMS(网络管理系统),可以远程监管BDA的工作状态,并通过以太网或LAN将操作参数下载到BDA.

应用:

扩大信号覆盖范围或在无线电网络信号较弱或不可用的地方填充信号盲区.

  • 公共安全
  • 运输
  • 公用事业
  • 政府
  • 军事
  • PAMR
  • 商业和工业
  • 石油天然气
ItemsUHF RF BDA
Frequency Range (Customized)UplinkDownlink
452~457MHz/806~821MHz462~467MHz/851~866MHz
Bandwidth (To Specify Before Production)From 1 to 15MHz,Filter SAW Adjusted
Maximum Gain (Customized)85±3dB85/.../90±3dB
Maximum Output Power (Customized)30±2dBm30/.../43±2dBm
In-Band Flatness≤±2.5dB
ALC(Auto Level Control)≤2dB(When The Maximum Output Power of BDA is Reached, Increase Input Power by 1~20dbm, Output Variation ≤2dB)
Noise Figure≤5dB
Gain Adjustment Range1~31 dB @ Step of 1 dB
VSWR≤1.5
GSystem Delay≤5μSec
Spurious Emission9KHz - 1GHz: ≤ -36dBm / 30KHz
Gain Adjustment Range1GHz - 12.75GHz: ≤ -30dBm / 30KHz
Third-Order Inter-Modulation≤-45dBc
Output/Input Resistance50 Ω
RF ConnectorN-Type (Female)
Working Temperature-25°C ~+55°C
Relative Humidity Range≤95%(Non Condensing)
Power SupplyAC220V, 50/60Hz
Dimensions428mm×328mm×175mm
Weight15kg
ApplicationIndoor or Outdoor(IP65)
Local ControlWeb Browser GUI Local Via RJ-45 Interface or WiFi Hotspot
NMS Mode(Optional)Wirelss Modem(3G/4G), IP Connectivity
NMS Function(Optional)Real-time Alarm for Door Status, Temperature, Power Supply, VSWR, etc; Remote Control Such as Turn On/Off, Increasing/Decreasing Output Power etc; Real-time Status for Output/Input Power, UL/DL Gain, All Status of BDA etc.
