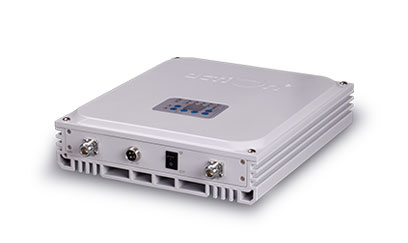

UHF 微型小功率直放站提供了一种经济实惠的解决方案，可以解决由于建筑障碍物引起的信号衰落和衰减而导致的室内信号覆盖问题。 而且它易于安装和维护，可以帮助电信运营公司提升效率。
特点:
应用:
扩大信号覆盖范围或在无线电网络信号较弱或不可用的地方填充信号盲区.
| Items | UHF PICO BDA | |
|---|---|---|
| Frequency Range | Uplink (Customized) | 452-457 MHz / 806-821 MHz |
| Downlink (Customized) | 462-467 MHz / 851-866 MHz | |
| Working Bandwidth (To Specify Before Production) | From 1 to 15MHz,Filter SAW Adjusted | |
| Maximum Gain | 70±3dB | |
| Maximum Output Power(Customized) | 27±2dBm | |
| AGC&MGC Range | ≥20dB | |
| Maximum Input Power(Non-Destructive) | ≤0dBm | |
| I/O Impedance | 50 Ω | |
| Noise Figure | ≤ 6dB | |
| System Delay | ≤ 5μs | |
| VSWR | ≤ 2.0 | |
| RF Connector | N-Type (Female) | |
| Spurious Emission | 9kHz~1GHz: ≤ -36dBm/30kHz | |
| 1GHz~12.75GHz:≤-30dBm/30kHz | ||
| Power Consumption | ≤ 25W | |
| Power Supply | Input:AC100~ 240V;Output:9V/5A | |
| Dimensions | 188mm×265mm×68mm | |
| Weight | ≤5 kg | |
| Alarm Monitoring System | Alarm for Uplink Self-Oscillation | |
| Isolation Detection | Isolation Check During Boot Time | |
| LED Indicator | Power Supply, Smart, State | |
| Operating Temperature | -10 ~ +50 °C | |
| Application | Indoor(IP30) | |
| Relative Humidity Range | ≤ 95%(Non Condensing) | |
