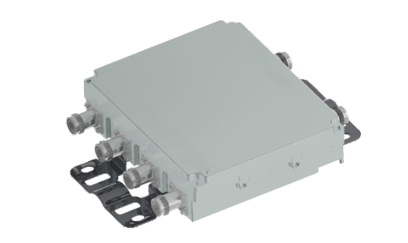

双单元双频合路器


双单元双频合路器


双单元双频合路器

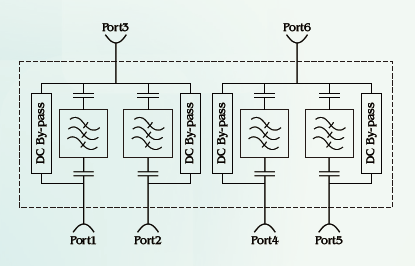

1. 示意图:




2. 规格参数:


Type4Ports In- 2Ports Out
Operating Frequency (Customized)1710 ~ 1880 MHz1920 ~ 2170 MHz
PortPort 1 → Port 3Port 2 → Port 3
Port 4 → Port 6Port 5 → Port 6
VSWR≤1.22
Insertion Loss≤0.35dB
Isolation Between Bands≥50dB
PIM3≤-160dBc @ 2 x 20W
Power Handling≤200W
Connector Type4.3-10 Female/DIN Female
AplicationIndoor or Outdoor(IP67)
Impedance50Ω
Lightning Protection10kA, 10/350μs pulse
Operating Temperature(℃)-20℃ to + 65℃
DC/AISG TransparencyBy-Pass(Max. 3000mA)By-Pass(Max. 3000mA)
Relative Humidity5% ~ 95%
MountingWall or Mast Mount
Weight≤3Kg
Packing1 PCS/Box
