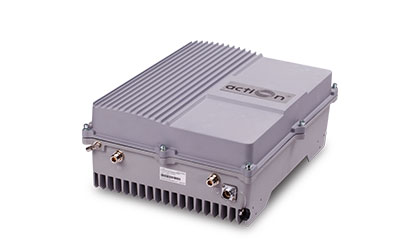

Items | TETRA ICS 直放站 |
Frequency Range (Customized) | Uplink | 380~385 MHz / 415~420 MHz / 806~821 MHz |
Downlink | 390~395 MHz / 425~430 MHz / 851~866 MHz |
Maximum Output Power (Customized) | Uplink | 30dBm |
Downlink | 30/.../43±2dBm |
Maximum Gain | 85/.../95±3dB (Customized) |
Gain Adjustment Range | 1~31 dB @ Step of 1 dB |
Operating Maximum Gain | ≥Antenna Isolation + 10dB |
No. of Channels | 8 |
Power Amplifier Oscillation Protection | Interference Cancellation System |
Cancellation Feedback Signals – Maximum Sizes of Window | ≥6μSec |
Interference Cancellation Range | ≥25dB |
VSWR | ≤1.5 |
Noise Figure | ≤6dB |
In-Band Ripple | ≤3dB |
Maximum Input Power (Non-Destructive) | -10dBm |
Spurious Emission | ≤-36dBm |
Third-order Inter-Modulation | ≤-45dBc |
System Delay | ≤8.0μSec |
I/O Impedance | 50Ω |
RF Connector | N-Type (Female) |
Operation Temperature Range | -25°C ~ + 55°C |
Relative Humidity Range | ≤95% (Non Condensing) |
Application | Indoor or Outdoor(IP65) |
Dimensions | 428mm×328mm×175mm |
Weight | 15Kg |
Power Supply (Customized) | AC110V or AC220V, 50/60Hz |
Local Control | Web Browser GUI Local Via RJ-45 Interface or WiFi Hotspot |
NMS Mode (Optional) | Wirelss Modem (3G/4G), IP Connectivity |
NMS Function(Optional) | Real-time Alarm for Door Status, Temperature, Power Supply, VSWR, etc; Remote Control Such as Turn On/Off, Increasing/Decreasing Output Power etc; Real-time Status for Output/Input Power, UL/DL Gain, All Status of BDA etc. |
