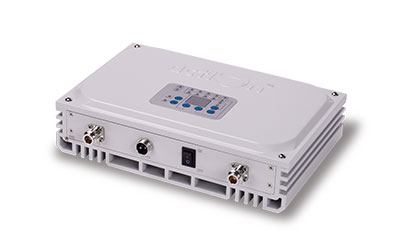

Items | TETRA PICO BDA |
Frequency Range | Uplink (Customized) | 380~385 MHz / 415~420 MHz / 806~821 MHz |
Downlink (Customized) | 390~395 MHz / 425~430 MHz / 851~866 MHz |
Bandwidth (To Specify Before Production) | From 1 to 15MHz,Filter SAW Adjusted |
Maximum Gain | 65±3dB |
Maximum Output Power(Customized) | 20±2dBm |
AGC&MGC Range | ≥20dB |
Maximum Input Power(Non-Destructive) | ≤0dBm |
I/O Impedance | 50 Ω |
Noise Figure | ≤ 6dB |
System Delay | ≤ 5μs |
VSWR | ≤ 2.0 |
RF Connector | N-Type (Female) |
Spurious Emission | 9kHz~1GHz: ≤ -36dBm/30kHz |
1GHz~12.75GHz:≤-30dBm/30kHz |
Power Consumption | ≤ 25W |
Power Supply | Input:AC100~ 240V;Output:9V/5A |
Dimensions | 188mm×265mm×68mm |
Weight | ≤5 kg |
Alarm Monitoring System | Alarm for Uplink Self-Oscillation |
Isolation Detection | Isolation Check During Boot Time |
LED Indicator | Power Supply, Smart, State |
Operating Temperature | -10 ~ +50 °C |
Application | Indoor(IP30) |
Relative Humidity Range | ≤ 95%(Non Condensing) |
