380-960 MHz / 1710-2700 MHz 双频合路器


380-960 MHz / 1710-2700 MHz 双频合路器


双频合路器

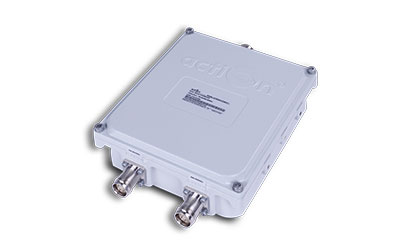

1. 示意图:




2. 规格参数:


Type2 Ports In - 1 Port Out
PortPort 1Port 2
Operating Frequency (Customized)380~960 MHz1710~2700 MHz
VSWR≤1.22
Insertion Loss≤0.2dB≤0.2dB
Isolation Between Paths≥80dB
PIM3≤-160dBc @2 x 20W
Power Handling≤200W
Connector Type4.3-10 Female/DIN Female
AplicationIndoor or Outdoor(IP67)
Impedance50Ω
Lightning Protection10kA, 10/350μs pulse
Operating Temperature(℃)-20℃ to + 65℃
DC/AISG TransparencyBy-Pass(Max. 3000mA)By-Pass(Max. 3000mA)
Relative Humidity5% ~ 95%
MountingWall or Mast Mount
Weight≤ 1.8Kg
Packing1 PCS/Box
