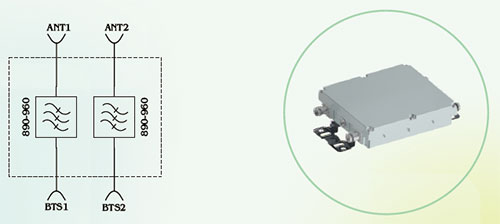

1. Diagrama esquemático:
2. Especificação:
Type | 2Ports In - 2Ports Out |
---|---|
Operating Frequency (Customized) | 890~960 MHz |
VSWR | ≤1.22 |
Rejection | ≥50dB @DC~885MHz |
PIM3 | ≤-160dBc @2 × 20W |
Power Handling | ≤200W |
Impedance | 50Ω |
DC/AISG Transparency | By-Pass(Max.3000 mA) |
Lightning Protection | 10kA, 10/350μs pulse |
Connector Type | 4.3-10 Female / DIN Female |
Dimensions | 230×205×57 (mm) |
Operating Temperature | -20°C to +60°C |
Weight | 4Kg |
