1/2” Cabo do alimentador
- Return Loss (V.S.W.R): 26dB@800-1000MHz; 24dB@1700-3000MHz.
- Minimum Bending Radius:
- Single bending:50mm, Repeated bending: 125mm.
- Maximum Operating Frequency: 5.8GHz.
- Cut-off Frequency: 10.0GHz.
- Peak Power Rating: 40Kw.
1/2” Cabo do alimentador Especificação:
7/8” Cabo do alimentador
- Return Loss (V.S.W.R): 26dB@800-1000MHz; 24dB@1700-2500MHz; 21dB@2500-3000MHz;
- Minimum Bending Radius:
- Single bending:90mm, Repeated bending: 250mm.
- Maximum Operating Frequency: 5GHz.
- Cut-off Frequency: 5.2GHz.
- Peak Power Rating: 91Kw.

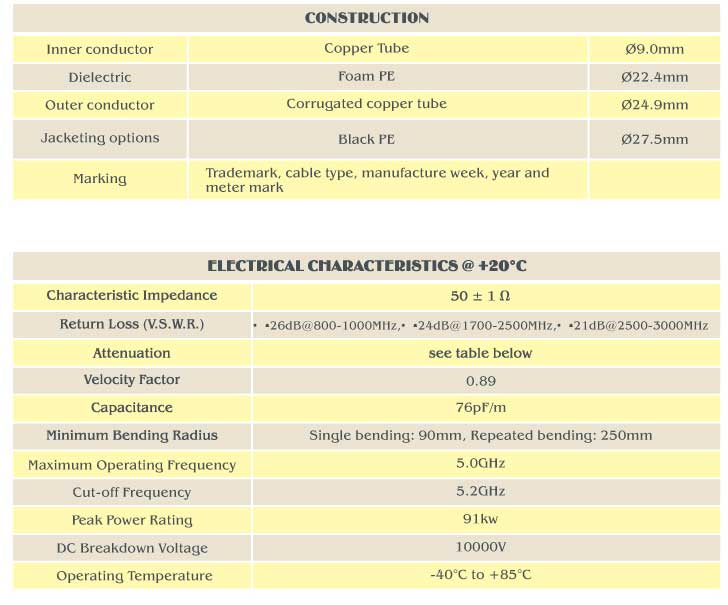

7/8” Cabo do alimentador Especificação:
