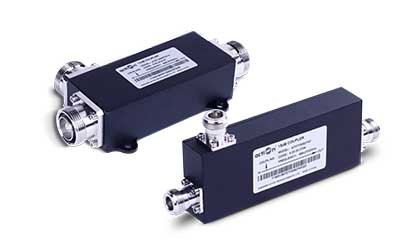

O acoplador RF é um divisor de potência e um componente passivo BTS / IBS com baixa perda de inserção. Pode ser aplicado ao sistema de distribuição de sinal interno ou externo, caracterizado como dividindo um sinal de entrada em duas ou várias saídas de sinal com nível de acoplamento especificado.
Especificação:
Model | AT0705066043F | AT0706066043F | AT0707066043F | AT0708066043F |
Coupling Level | 5dB | 6dB | 7dB | 8dB |
Frequency | 698~6000 MHz |
Coupling Uniformity | ±0.8 | ±0.8 | ±0.8 | ±0.8 |
Insertion Loss | ≤2.1 | ≤1.7 | ≤1.5 | ≤1.3 |
V.S.W.R | ≤ 1.25dB |
Isolation | ≥25 | ≥26 | ≥27 | ≥28 |
Inter-modulation(3rd order) | < -160 dBc @ 2x43 dBm |
Impedance | 50Ω |
Power Handing | 300W(Avg.) |
Operating Temperature Range | -40°C to +65°C |
Storage Temperature Range | -40℃ to + 85℃ |
Relative Humidity | 5~95 % |
Aplications | Indoor or Outdoor(IP67) |
Connectors | 4.3-10 Female / DIN Female / N Female |
Weight | ≤0.8Kg |
Dimentions | 180×71×38(mm) |
Packing | 1 pcs/box |
Model | AT0710066043F | AT0712066043F | AT0715066043F | AT0720066043F |
Coupling Level | 10dB | 12dB | 15dB | 20dB |
Frequency | 698~6000 MHz |
Coupling Uniformity | ±1 | ±1 | ±1 | ±1 |
Insertion Loss | ≤0.7 | ≤0.6 | ≤0.4 | ≤0.3 |
V.S.W.R | ≤ 1.25dB |
Isolation | ≥30 | ≥32 | ≥35 | ≥40 |
Inter-modulation(3rd order) | < -160 dBc @ 2x43 dBm |
Impedance | 50Ω |
Power Handing | 300W(Avg.) |
Operating Temperature Range | -25°C to +65°C |
Storage Temperature Range | -40℃ to + 85℃ |
Relative Humidity | 5~95 % |
Aplications | Indoor or Outdoor(IP67) |
Connectors | 4.3-10 Female / DIN Female / N Female |
Weight | ≤0.8Kg |
Dimentions | 180×71×38(mm) |
Packing | 1 pcs/box |
Model | AT0725066043F | AT0730066043F | AT0735066043F | AT0740066043F |
Coupling Level | 25dB | 30dB | 35dB | 40dB |
Frequency | 698~6000 MHz |
Coupling Uniformity | ±1 | ±1 | ±1 | ±1 |
Insertion Loss | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
V.S.W.R | ≤ 1.25dB |
Isolation | ≥45 | ≥50 | ≥55 | ≥60 |
Inter-modulation(3rd order) | < -160 dBc @ 2x43 dBm |
Impedance | 50Ω |
Power Handing | 300W(Avg.) |
Operating Temperature Range | -25°C to +65°C |
Storage Temperature Range | -40℃ to + 85℃ |
Relative Humidity | 5~95 % |
Aplications | Indoor or Outdoor(IP67) |
Connectors | 4.3-10 Female / DIN Female / N Female |
Weight | ≤0.8Kg |
Dimentions | 180×71×38(mm) |
Packing | 1 pcs/box |
