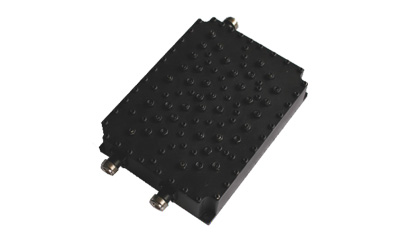

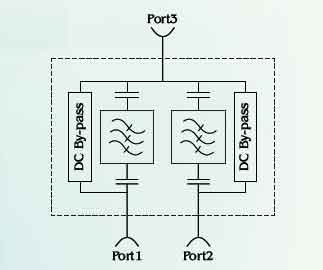

1. Diagrama esquemático:
2. Especificación:
Type | 2 Ports In - 1 Port Out | ||
---|---|---|---|
Port | Port 1 | Port 2 | |
Operating Frequency (Customized) | 380~960 MHz | 1710~2500 MHz | |
VSWR | ≤1.3 | ||
In-Band Ripple | ≤0.2dB | ||
Insertion Loss | ≤0.3dB | ≤0.3dB | |
Rejection | ≥80dB | ||
PIM3 | ≤-155dBc @2 x 20W | ||
Power Handling | ≤200W | ||
Connector Type | N Female | ||
Aplication | Indoor | ||
Impedance | 50Ω | ||
Lightning Protection | 10kA, 10/350μs pulse | ||
Operating Temperature(℃) | -20℃ to + 65℃ | ||
DC/AISG Transparency | By-Pass(Max. 3000mA) | By-Pass(Max. 3000mA) | |
Relative Humidity | 5% ~ 95% | ||
Mounting | Wall or Mast Mount | ||
Weight | 0.52Kg | ||
Packing | 1 PCS/Box |
