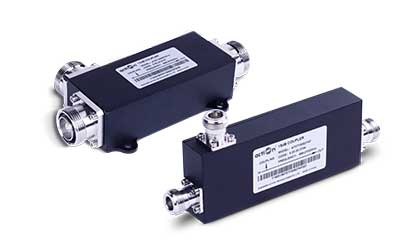

El acoplador direccional RF es un divisor de potencia y un componente pasivo BTS / IBS de baja pérdida de inserción. Se puede aplicar al sistema de distribución de señal interior o exterior, que se presenta como dividir una señal de entrada en dos o múltiples salidas de señal con la amplitud.
Especificación de acoplador:
| Model | AT0705066043F | AT0706066043F | AT0707066043F | AT0708066043F |
|---|---|---|---|---|
| Coupling Level | 5dB | 6dB | 7dB | 8dB |
| Frequency | 698~6000 MHz | |||
| Coupling Uniformity | ±0.8 | ±0.8 | ±0.8 | ±0.8 |
| Insertion Loss | ≤2.1 | ≤1.7 | ≤1.5 | ≤1.3 |
| V.S.W.R | ≤ 1.25dB | |||
| Isolation | ≥25 | ≥26 | ≥27 | ≥28 |
| Inter-modulation(3rd order) | < -160 dBc @ 2x43 dBm | |||
| Impedance | 50Ω | |||
| Power Handing | 300W(Avg.) | |||
| Operating Temperature Range | -40°C to +65°C | |||
| Storage Temperature Range | -40℃ to + 85℃ | |||
| Relative Humidity | 5~95 % | |||
| Aplications | Indoor or Outdoor(IP67) | |||
| Connectors | 4.3-10 Female / DIN Female / N Female | |||
| Weight | ≤0.8Kg | |||
| Dimentions | 180×71×38(mm) | |||
| Packing | 1 pcs/box | |||
| Model | AT0710066043F | AT0712066043F | AT0715066043F | AT0720066043F |
|---|---|---|---|---|
| Coupling Level | 10dB | 12dB | 15dB | 20dB |
| Frequency | 698~6000 MHz | |||
| Coupling Uniformity | ±1 | ±1 | ±1 | ±1 |
| Insertion Loss | ≤0.7 | ≤0.6 | ≤0.4 | ≤0.3 |
| V.S.W.R | ≤ 1.25dB | |||
| Isolation | ≥30 | ≥32 | ≥35 | ≥40 |
| Inter-modulation(3rd order) | < -160 dBc @ 2x43 dBm | |||
| Impedance | 50Ω | |||
| Power Handing | 300W(Avg.) | |||
| Operating Temperature Range | -25°C to +65°C | |||
| Storage Temperature Range | -40℃ to + 85℃ | |||
| Relative Humidity | 5~95 % | |||
| Aplications | Indoor or Outdoor(IP67) | |||
| Connectors | 4.3-10 Female / DIN Female / N Female | |||
| Weight | ≤0.8Kg | |||
| Dimentions | 180×71×38(mm) | |||
| Packing | 1 pcs/box | |||
| Model | AT0725066043F | AT0730066043F | AT0735066043F | AT0740066043F |
|---|---|---|---|---|
| Coupling Level | 25dB | 30dB | 35dB | 40dB |
| Frequency | 698~6000 MHz | |||
| Coupling Uniformity | ±1 | ±1 | ±1 | ±1 |
| Insertion Loss | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| V.S.W.R | ≤ 1.25dB | |||
| Isolation | ≥45 | ≥50 | ≥55 | ≥60 |
| Inter-modulation(3rd order) | < -160 dBc @ 2x43 dBm | |||
| Impedance | 50Ω | |||
| Power Handing | 300W(Avg.) | |||
| Operating Temperature Range | -25°C to +65°C | |||
| Storage Temperature Range | -40℃ to + 85℃ | |||
| Relative Humidity | 5~95 % | |||
| Aplications | Indoor or Outdoor(IP67) | |||
| Connectors | 4.3-10 Female / DIN Female / N Female | |||
| Weight | ≤0.8Kg | |||
| Dimentions | 180×71×38(mm) | |||
| Packing | 1 pcs/box | |||
