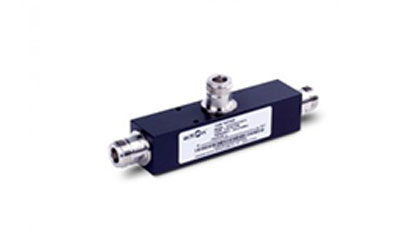

Низкие вносимые потери и значения связи Tapper позволяют распределять радиочастотные или антенные сигналы с более низкой мощностью. По сравнению с делителем мощности Tapper не делит сигнал, но в случае потери при вставке и связи одинаковое входное значение передается на два выходных порта в максимально возможной степени. По сравнению с муфтой Tapper не нужно уменьшать изоляцию для работы.
спецификация:
Model | AT2203063843F | AT2205063843F | AT2206063843F | AT2208063843F |
---|---|---|---|---|
Coupling | 3dB | 4.8dB | 6dB | 8dB |
Frequency (Customized) | 698~1400 MHz & 1700~3800 MHz | |||
Coupling Valuing (dB) | 4.8±1.2 | 6.1±1.0 | 7±0.8 | 8.6±0.8 |
Insertion Loss (dB) | ≤2.1 | ≤1.7 | ≤1.4 | ≤1.1 |
VSWR | ≤1.3 | |||
PIM3 | ≤-160dBc @2×43dBm | |||
Impedance | 50Ω | |||
Power Handing | 300W(Avg.) | |||
Operating Temperature Range | -40℃ to + 65℃ | |||
Relative Humidity | 5%~95% | |||
Aplications | Indoor or Outdoor(IP67) | |||
Connector Type (Customized) | 4.3-10 Female / DIN Female / N Female | |||
Weight | ≤0.5Kg | |||
Dimentions | 105×25×25(mm) | |||
Packing | 1 pcs/box |
Model | AT2209063843F | AT2210063843F | AT2213063843F | AT2215063843F |
---|---|---|---|---|
Coupling | 9dB | 10dB | 13dB | 15dB |
Frequency (Customized) | 698~1400 MHz & 1700~3800 MHz | |||
Coupling Valuing (dB) | 9.5±0.8 | 10.4±0.8 | 13.2±0.8 | 15.1±0.8 |
Insertion Loss (dB) | ≤0.9 | ≤0.7 | ≤0.5 | ≤0.3 |
VSWR | ≤1.3 | |||
PIM3 | ≤-160dBc @2×43dBm | |||
Impedance | 50Ω | |||
Power Handing | 300W(Avg.) | |||
Operating Temperature Range | -40℃ to + 65℃ | |||
Relative Humidity | 5%~95% | |||
Aplications | Indoor or Outdoor(IP67) | |||
Connector Type (Customized) | 4.3-10 Female / DIN Female / N Female | |||
Weight | ≤0.5Kg | |||
Dimentions | 105×25×25(mm) | |||
Packing | 1 pcs/box |
Model | AT2220063843F | AT2230063843F |
---|---|---|
Coupling | 20dB | 30dB |
Frequency (Customized) | 698~1400 MHz & 1700~3800 MHz | |
Coupling Valuing (dB) | 20.1±0.8 | 30.1±2 |
Insertion Loss (dB) | ≤0.3 | ≤0.3 |
VSWR | ≤1.3 | |
PIM3 | ≤-160dBc @2×43dBm | |
Impedance | 50Ω | |
Power Handing | 300W(Avg.) | |
Operating Temperature Range | -40℃ to + 65℃ | |
Relative Humidity | 5%~95% | |
Aplications | Indoor or Outdoor(IP67) | |
Connector Type (Customized) | 4.3-10 Female / DIN Female / N Female | |
Weight | ≤0.5Kg | |
Dimentions | 105×25×25(mm) | |
Packing | 1 pcs/box |
