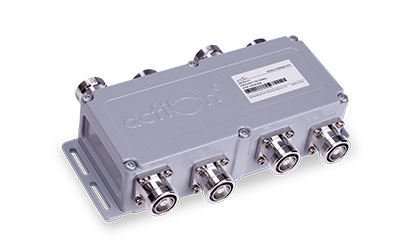

This is a same band combiner, whose frequency can be customized for all operators. Designed with 4 inputs and 4 outputs, the Matrix 4x4 can efficiently integrate multiple close bands and transmit the overall band respectively through multiple ports. For unused ports they can be terminated with low PIM dummy loads. The whole case is under IP66 waterproof, which can be applied to both indoor and outdoor. It would be your good choice for IBS/BTS system.
Feature:
| Type | Hibrid Combiner 698~2700 MHz(4In - 4Out) | |||
|---|---|---|---|---|
| Port | Port 1 | Port 2 | Port 3 | Port 4 |
| Frequency Range | 698~3800MHz | 698~3800MHz | 698~3800MHz | 698~3800MHz |
| VSWR | ≤1.22 | |||
| Insertion Loss | ≤6.9dB | |||
| Isolation | ≥ 26 dB | |||
| Inter-modulation(3rd order) | ≤-160dBc @2 x 20W | |||
| Power Handing(W) | ≤300W | |||
| DC/AISG Transparency | DC path IN 1→OUT 4, IN 2→OUT 2 | |||
| DC path IN 3→OUT 3, IN 4→OUT 1 | ||||
| (max.6.5A AISG 2.0 confirm) | ||||
| Connector Type | 8Pcs 4.3-10 Female/DIN Female/N Female | |||
| Aplication | Indoor or Outdoor(IP67) | |||
| Operating Temperature(℃) | -20℃ to + 60℃ | |||
| Storage Temperature Range | -40°C to +85°C | |||
| Relative Humidity | 5% - 95% | |||
| Impedance | 50Ω | |||
| Dimensiton | 250×94×45(mm) | |||
| Weight | 2.0Kg | |||
| Packing | 1 Piece/box | |||
