RF Attenuator

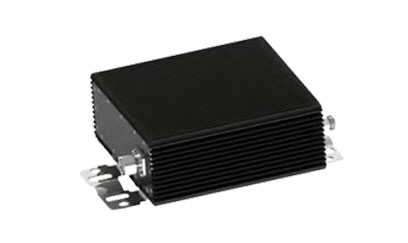

200W 40dB RF Attenuator




Model: AT0920043M4043F/AT09200DM40DF

  • Connectors type: 4.3-10 Male-Female/DIN Male-Female/N Male-Female.
  • Excellent electrical performance, Lowest antenuation tolerance.

Specification:

ModelAT0920043M4043F/AT09200DM40DF
Attenuation(Customized)3/.../40dB
Attenuation Accuracy±1.0dB
Frequency Range(Customized)DC~6GHz
V.S.W.R≤1.25
Max. Power(Customized)≤200W
Connector Type(Customized)4.3-10 Male-Female/DIN Male-Female/N Male-Female
Impedance50Ω
Operating Temperature Range-20℃ to + 60℃
Relative Humidity5%~95%
AplicationsIndoor or Outdoor(IP67)
Weight4.5Kg
Dimentions200×198×82(mm)
Packing1 pcs/box
