Feeder Cable


Feeder Cable


Feeder Cable

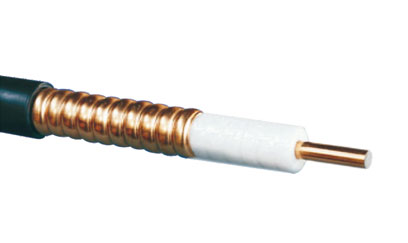

1/2” Feeder Cable

  • Return Loss (V.S.W.R): 26dB@800-1000MHz; 24dB@1700-3000MHz.
  • Minimum Bending Radius:
  • Single bending:50mm, Repeated bending: 125mm.
  • Maximum Operating Frequency: 5.8GHz.
  • Cut-off Frequency: 10.0GHz.
  • Peak Power Rating: 40Kw.

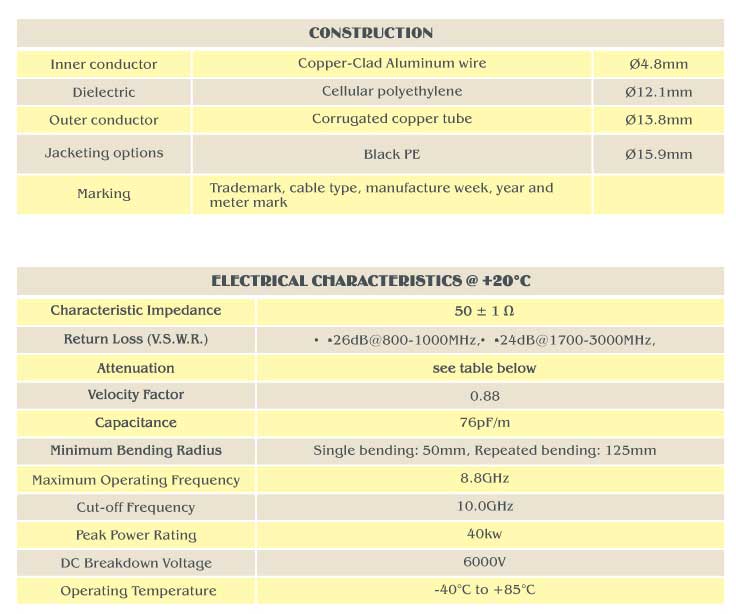

1/2” Feeder Cable Specification:

1/2” Feeder Cable specification

7/8” Feeder Cable

  • Return Loss (V.S.W.R): 26dB@800-1000MHz; 24dB@1700-2500MHz; 21dB@2500-3000MHz;
  • Minimum Bending Radius:
  • Single bending:90mm, Repeated bending: 250mm.
  • Maximum Operating Frequency: 5GHz.
  • Cut-off Frequency: 5.2GHz.
  • Peak Power Rating: 91Kw.

7/8” Feeder Cable Specification:

7/8” Feeder Cable specification
