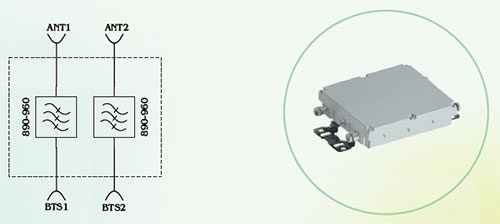

1. Schematic Diagram:
2. Specification:
| Type | 2Ports In - 2Ports Out |
|---|---|
| Operating Frequency (Customized) | 890~960 MHz |
| VSWR | ≤1.22 |
| Rejection | ≥50dB @DC~885MHz |
| PIM3 | ≤-160dBc @2 × 20W |
| Power Handling | ≤200W |
| Impedance | 50Ω |
| DC/AISG Transparency | By-Pass(Max.3000 mA) |
| Lightning Protection | 10kA, 10/350μs pulse |
| Connector Type | 4.3-10 Female / DIN Female |
| Dimensions | 230×205×57 (mm) |
| Operating Temperature | -20°C to +60°C |
| Weight | 4Kg |
