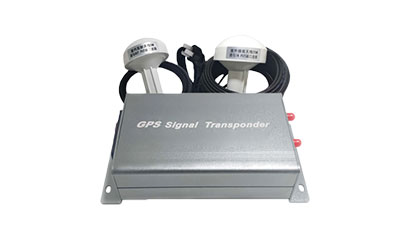

Beidou Repeater




Beidou Repeater




Beidou Repeater is a Beidou signal forwarding system with low cost and high gain, which is specially designed and developed for users of different industries in the weak indoor signal and small coverage area when Beidou receivers are produced, tested or used.

It can be quickly locked Beidou satellite signal by outdoor donor antenna, linearly amplifies the satellite signal and then retransmits it via the indoor coverage antenna to the weak/blind coverage area. So that the Beidou receivers within the signal coverage can receive the Beidou signal, realizing the function of real-time positioning timing signal enhancement.


Feature:

  • Simple operation, convenient installation.
  • There is no limit to the number of indoor Beidou receivers.
  • Beidou signal coverage area is large, up to more than 200 square meters.
  • Strong expansion performance: according to user requirements, can provide Beidou signal intensity adjustment; Beidou antenna lightning protection; Indoor output signal increase and other supporting services.

Application:

  • Beidou receiver product testing: Factory production lines (smart phones, car navigation systems, handheld computers, tablets, electronic dogs, satellite positioning and tracking equipment, etc.), Beidou laboratories, research institutions, need to test Beidou products, Application environment such as product performance verification.
  • Beidou signal indoor introduction coverage: Need to achieve indoor coverage of Beidou signals in various occasions: Aviation manufacturing, Aviation maintenance, research laboratories, underground parking, Beidou stores, indoor demonstration halls…

Diagram:

GPS&Beidou indoor coverage Diagram

Item

Specifications

Frequency Range

1568±10MHz(GPS1575/BD1561)

Maximum Gain

55±2dB

Noise Figure

≤2.0dB

Gain of Outdoor Antenna

+35dBi

Signal Coverage Radius

8-10m

Signal Output

1Group

Impedance

50Ω

VSWR

≤1.6

Connector Type

SMA-Female

Power Supply

AC100 – 240V

Dimensions

165x88x40mm

Weight

0.3kg

LED Indicator

Power Supply

Operating Temperature

-30 ~ +85 °C

Application

Indoor(IP30)

Relative Humidity Range

≤ 80%(Non Condensing)

Mounting

Wall Mounting

Accessories

1PCS Outdoor Donor Antenna with 25meters Jumper, 1PCS Indoor Coverage Antenna with 5meters Jumper
