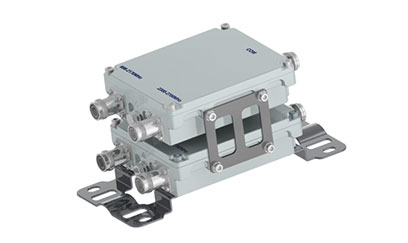

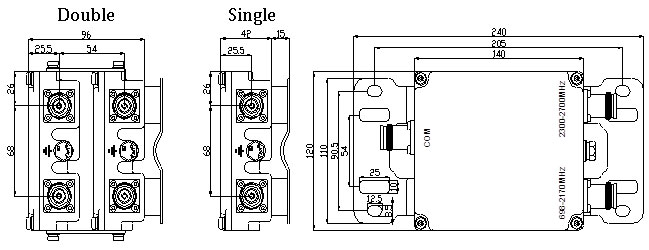

1. Schematic Diagram and Outline drawing:
2. Specification:
| Type | 4Ports In- 2Ports Out(Double Unit) | ||
|---|---|---|---|
| Port | Port 1 | Port 2 | |
| Operating Frequency (Customized) | 1427~2200 MHz | 2300~2690 MHz | |
| Insertion Loss(Typical) | ≤0.3dB | ≤0.3dB | |
| Ripple | ≤ 0.2dB | ≤ 0.2dB | |
| VSWR | ≤ 1.25 | ||
| Isolation | ≥ 50dB | ||
| PIM3 | ≤ -155dBc @ 2 x 43dBm | ||
| Power Handling | 200W(Avg.), 1000W(Peak) | ||
| Impedance | 50Ω | ||
| Connector Type | 4.3-10 Female | ||
| Application | Indoor or Outdoor(IP65) | ||
| Operating Temperature | -20℃ to + 60℃ | ||
| Relative Humidity | 5% ~ 95% | ||
| DC/AISG Pass-through Method | Auto Sensing | ||
| DC/AISG Pass-through Path | Auto Sensing Circuitry Detects DC/AISG Signal Presence and Selects Path | ||
| DC/AISG Pass-through, Combiner | Auto Sensing | ||
| DC/AISG Pass-through, Demultiplexer | Auto Sensing | ||
| Lightning Protection | 10kA,10/350us pulse | ||
| Dimensions | 140x120x90mm(Without Connectors) | ||
| Weight | 2.5Kg(Double Unit) | ||
| Color | Gray | ||
| Packing | 1PCS/Box | ||
