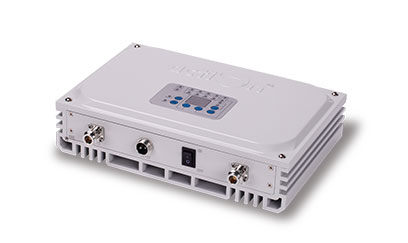

The VHF Pico BDA(Bi-Directional Amplifier) provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
Feature:
Applications:
To expand signal coverage or fill signal blind area where radio network signal is weak or unavailable.
| Items | VHF PICO BDA | |
|---|---|---|
| Frequency Range | Uplink (Customized) | 138-225MHz(10MHz Separation Between Uplink to Downlink) |
| Downlink (Customized) | 138-225MHz(10MHz Separation Between Uplink to Downlink) | |
| Working Bandwidth (To Specify Before Production) | From 1 to 10MHz,Filter SAW Adjusted | |
| Maximum Gain | 65±3dB | |
| Maximum Output Power(Customized) | 20±2dBm | |
| AGC&MGC Range | ≥20dB | |
| Maximum Input Power(Non-Destructive) | ≤0dBm | |
| I/O Impedance | 50 Ω | |
| Noise Figure | ≤ 6dB | |
| System Delay | ≤ 5μs | |
| VSWR | ≤ 2.0 | |
| RF Connector | N-Type (Female) | |
| Spurious Emission | 9kHz~1GHz: ≤ -36dBm/30kHz | |
| 1GHz~12.75GHz:≤-30dBm/30kHz | ||
| Power Consumption | ≤ 25W | |
| Power Supply | Input:AC100~ 240V;Output:9V/5A | |
| Dimensions | 188mm×265mm×68mm | |
| Weight | ≤5 kg | |
| Alarm Monitoring System | Alarm for Uplink Self-Oscillation | |
| Isolation Detection | Isolation Check During Boot Time | |
| LED Indicator | Power Supply, Smart, State | |
| Operating Temperature | -10 ~ +50 °C | |
| Application | Indoor(IP30) | |
| Relative Humidity Range | ≤ 95%(Non Condensing) | |
