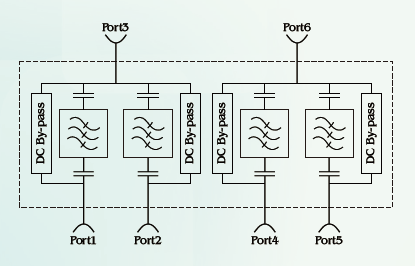

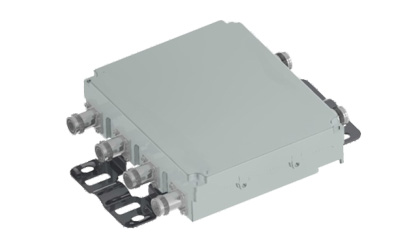

1. Twin Unit Dual Band Combiner Schematic Diagram:
2. Twin Unit Dual Band Combiner Specification:
| Type | 4Ports In- 2Ports Out | ||
|---|---|---|---|
| Operating Frequency (Customized) | 1710 ~ 1880 MHz | 1920 ~ 2170 MHz | |
| Port | Port 1 → Port 3 | Port 2 → Port 3 | |
| Port 4 → Port 6 | Port 5 → Port 6 | ||
| VSWR | ≤1.22 | ||
| Insertion Loss | ≤0.35dB | ||
| Isolation Between Bands | ≥50dB | ||
| PIM3 | ≤-160dBc @ 2 x 20W | ||
| Power Handling | ≤200W | ||
| Connector Type | 4.3-10 Female/DIN Female | ||
| Aplication | Indoor or Outdoor(IP67) | ||
| Impedance | 50Ω | ||
| Lightning Protection | 10kA, 10/350μs pulse | ||
| Operating Temperature(℃) | -20℃ to + 65℃ | ||
| DC/AISG Transparency | By-Pass(Max. 3000mA) | By-Pass(Max. 3000mA) | |
| Relative Humidity | 5% ~ 95% | ||
| Mounting | Wall or Mast Mount | ||
| Weight | ≤3Kg | ||
| Packing | 1 PCS/Box | ||
