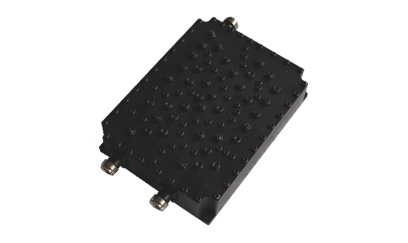

1. Schematic Diagram:
2. Specification:
| Type | 2 Ports In - 1 Port Out | ||
|---|---|---|---|
| Port | Port 1 | Port 2 | |
| Operating Frequency (Customized) | 380~960 MHz | 1710~2500 MHz | |
| VSWR | ≤1.3 | ||
| In-Band Ripple | ≤0.2dB | ||
| Insertion Loss | ≤0.3dB | ≤0.3dB | |
| Rejection | ≥80dB | ||
| PIM3 | ≤-155dBc @2 x 20W | ||
| Power Handling | ≤200W | ||
| Connector Type | N Female | ||
| Aplication | Indoor | ||
| Impedance | 50Ω | ||
| Lightning Protection | 10kA, 10/350μs pulse | ||
| Operating Temperature(℃) | -20℃ to + 65℃ | ||
| DC/AISG Transparency | By-Pass(Max. 3000mA) | By-Pass(Max. 3000mA) | |
| Relative Humidity | 5% ~ 95% | ||
| Mounting | Wall or Mast Mount | ||
| Weight | 0.52Kg | ||
| Packing | 1 PCS/Box | ||
