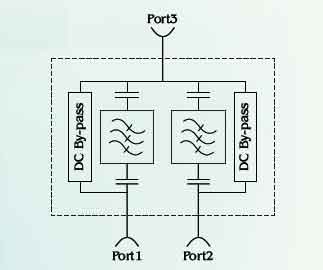

1. Schematic Diagram:
2. Specification:
| Type | 2 Ports In - 1 Port Out | ||
|---|---|---|---|
| Port | Port 1 | Port 2 | |
| Operating Frequency (Customized) | 698~2700 MHz | 3300~3800 MHz | |
| VSWR | ≤1.22 | ||
| Insertion Loss | ≤0.3dB | ≤0.3dB | |
| Isolation Between Paths | ≥40dB | ||
| PIM3 | ≤-160dBc @2 x 20W | ||
| Power Handling | ≤200W | ||
| Connector Type | 4.3-10 Female/DIN Female | ||
| Aplication | Indoor or Outdoor(IP67) | ||
| Impedance | 50Ω | ||
| Lightning Protection | 10kA, 10/350μs pulse | ||
| Operating Temperature(℃) | -20℃ to + 65℃ | ||
| DC/AISG Transparency | By-Pass(Max. 3000mA) | By-Pass(Max. 3000mA) | |
| Relative Humidity | 5% ~ 95% | ||
| Mounting | Wall Mount: With 4 Screws/Mast Mount: With Additional Clamp Set | ||
| Weight | ≤ 3Kg | ||
| Packing | 1 PCS/Box | ||
