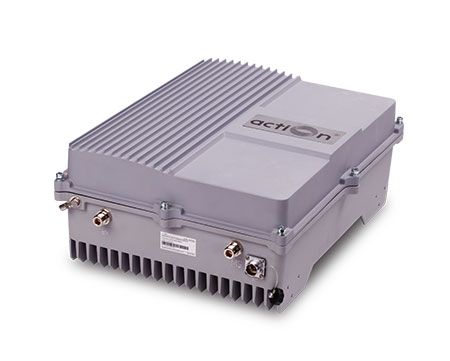

The LTE2600 RF Repeater is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in LTE2600 system. And its easy installation and maintenance can help carrier get fast return. The repeater is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.

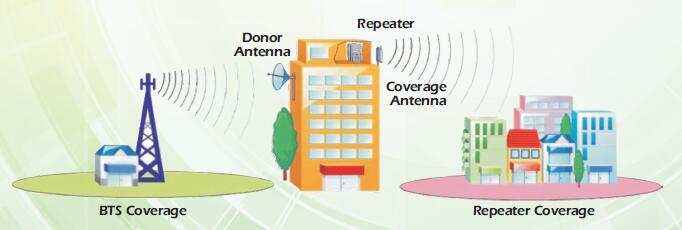

Below is the 4G LTE2600 repeater application diagram:
Technical Specification:
Items | LTE2600 | |
---|---|---|
Frequency Range | Uplink | 2540~2560MHz |
Downlink | 2660~2680MHz | |
Bandwidth(SAW Filter for UL&DL) | 20MHz | |
Maximum Output Power | Uplink | 30dBm |
Downlink | 43dBm | |
Maximum Gain | 90±3dB | |
Gain Adjustment Range | 1~31dB in Step of 1dB | |
In-brand Ripple | ±3dB | |
Voltage Standing Wave Ratio | ≤1.5 | |
Maximum Input Power(non-destructive) | 10dB | |
Spurious Emission | Comply with 3GPP TS 25.106 V6.0.0 | |
Third-order Inter-moduleation | Comply with 3GPP TS 25.106 V6.0.0 | |
Peak Code Domain Error(PCDE) | ≤-35dB | |
Error Vector Magnitude(EVM) | ≤8% | |
Noise Figur | ≤6dB | |
System Delay | ≤5Sec | |
I/O Impedance | 50Ω | |
Temperature Range | Operation:-25℃~+55℃ | |
Relative Humidity Range | ≤95%(non condensing) | |
Power Supply | AC220V, 50/60Hz | |
Dimensions | 428x328x175 mm | |
Weight | ≤20kg | ≤15kg |
Power Consumption | ≤200W | |
Aplication | Indoor(IP30) | Indoor or Outdoor(IP65) |
Remote Control Unit | Wireless Modem(3G) | |
NMS Monitoring Function(Optional) | Real-time alarm for door status, temperature, power supply, VSWR, etc; Remote control such as turn on/off, increasing/decreasing output power etc; Real-time status for output/input power, UL/DL gain, all status of repeater etc. |
